Reproduced from: The Evolution of the 100W Circuit: From JTMs to JMP Superleads
By Roe Fremstedal
This article tries to give an overview over the early Marshall 100 watt amplifiers by piecing together available information and shedding new light on transitional models from 1967. The first 100 watt amps – known today as “JTM45/100s” – used “JTM45” plexi faceplates and white “Super 100 Amplifier” back-plates. However, the 100 watt PA amps used “JTM100” faceplates. In 1967 several changes were made. First, the plexi “Superlead” and “Superbass” backplates were introduced, then the so-called “Black Flag” “J.T.M.” plexi faceplate was used in a transitional period. Finally, the “JMP” plexi faceplate replaced the earlier faceplates. The main stages in the evolution of these early 100 watt amps are:
- Prototypes (1965)
- Amps with dual output transformers (1965)
- First amps with single output transformer (1966)
- First EL34 amps (1967)
- Second series of EL34 amps with dual rectifiers (1967)
- JMP faceplate and new power supply (1967)
- New Superlead circuit (1968)
- New chassis and higher filtering (1969)
- Yet another chassis, last plexis (1969)
- Aluminium panel amps (1969-)
Version 1: Prototypes (1965)
Famously, the first 100 watt amps were made on request by The Who’s Pete Townsend. The first prototype is reported to have used four 6V6 output tubes and a single GZ34 rectifier tube. It probably used only one Radiospares Deluxe Output transformer, reportedly giving an output of 60 watt. The second prototype reportedly used two output transformers, two GZ34 rectifiers, and four 6L6 output tubes, whereas the third prototype used KT66 output tubes. Ken Bran and Dudley Craven at Marshall eventually dropped the GZ34 tube rectifier, increasing power and reliability. The output of the third prototype is supposed to have exceeded 100 watt (Doyle, History of Marshall, pp. 33-34). However, it is uncertain whether this refers to power at the point of breakup or maximum output.
Version 2: First Production Models with Dual Output Transformers (Mid-Late 1965)
The first production amps used a big Hammertone Radiospares power transformer (with taps for both 350VAC and 425VAC). According to tech reports, these early amps have around 470VDC on the plates of the KT66s (indicating that the 350VAC tap was used). These amps run at much lower voltages than the later KT66 amps, producing less power while being easier on the tubes. Also, it should be kept in mind that the voltages drop or “sag” significantly under load, since the power transformer was only rated for 200mA (by comparison, a Twin transformer is 450mA). This power supply sag gives a softer, more dynamic response with more distortion when running flat out.
As opposed to the prototypes, the production amps used Drake output transformers. The early ones had ohms switches mounted to the transformers, whereas the later ones had ohms switches on the backplates like later amps had. The transformer was the same Drake 784-103 used in the 1965-66 JTM45s, although two transformers was used for a quad of KT66s. Like the JTM45s, the early 100 watt amps ran the KT66s inefficiently by using a high load. The Drake transformers have very high primary impedance (8K), something that reduces power and bandwidth significantly. These 100W amps are basically like a dual JTM45 but with a solid state rectifier, giving slightly higher voltages. Whereas a JTM45 puts out 30-35 watt at the point of breakup, these early amps put out around 70 watt at the point of breakup (and more than 100 watt at full breakup).
The choke (inductor) on these early amps appears to have been the Radiospares 20 henry choke often seen on the early Marshall schematics. The Radiospares choke is different from the Drake and Dagnall chokes used later. The Radiospares choke is rated for 20 henry and 70mA, whereas the Drake and Dagnall are rated for 3 henry and 100mA. It also has a have a high resistance (690 ohms) compared to the later chokes (110 ohms). This high resistance gives more voltage drop across the choke than with the later chokes. When running the amp hard, screen voltages (and preamp voltages) will sag more, giving a softer response with more breakup.
A key element to element to the sound and response of these amps lies in the power supply, especially the filtering (smoothing). The preamp used a single 16uf capacitor (for V1 and V2) like the JTM45s; whereas the phase inverter (V3) used 32uf (a JTM45 typically has 16uf). However, screens filtering is only 16uf for 4 KT66s (a JTM45 has 32uf for two KT66s) and mains filtering is 32uf (like a JTM45). This low filtering gives a loose feeling and an open tone, great for blues and classic rock. Unlike the JTM45, this amplifier use two capacitors in series at the screens and four capacitors (series and parallel) at the mains. Putting capacitors in series like this will increase the voltage handling but decrease capacitance (two 32uf, 450V capacitors in series gives 16uf, 900V). Capacitors were Radiospares 32uf, 450V. Today RIFA and BC Vishay 33uf are popular replacements.
The head cabinet on these amps use two narrow Vox type vents (used until late 1966). The first amps used the rare block logo, the later ones a standard “Marshall” logo. The indicator was the round yellow Radiospares lamp used on the JTM45s, and speaker cabinets had Celestion silver alnico speakers. Serial numbers are in the 6.500-6.600 range. Needless to say, this amplifier is quite rare. It was recreated by Marshall as the 40th anniversary stack (and Wallace amps did a version on JTM45 chassis). The only known user of the original amps is The Who (http://www.thewho.net/whotabs/gear/).

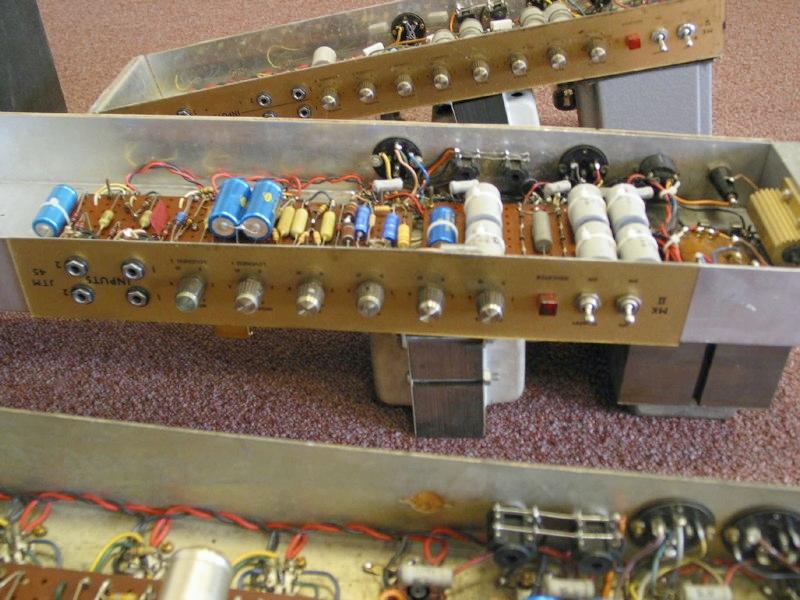

’65 JTM45 100w Super Tremolo Model #1959T Dual Output SN 6691. Full gallery and details
’65 JTM45 100w Super Tremolo Model #1959T Dual Output SN 6691. Same amp as above. Full gallery and details
Version 3A: Single Output Transformer (Late 1965-Early 1966)
In September 1965 a new output transformer, the Drake 1202-84, was introduced (2″ stack; 4K primary; 8 and 16ohms secondaries as well as a 100V secondary for PAs). This transformer was designed for a quad of KT66s, replacing the two 784-103 used earlier. The power transformer was still the big Radiospares one, a transformer mostly seen on the PA amps. And the choke appears to still be the Radiospares 20H. Some of these amps have the same power board layout as the previous amps (#2), whereas others had the later layout, although filtering was kept the same. Some use the round yellow indicator, although some use the square red indicator seen on later plexis. The headcabs still used Vox vents. Serial numbers covers the range from 6.600 through 6.800.
’66 JTM100 Super PA Model #1968 100w SN 6784. Full gallery and details

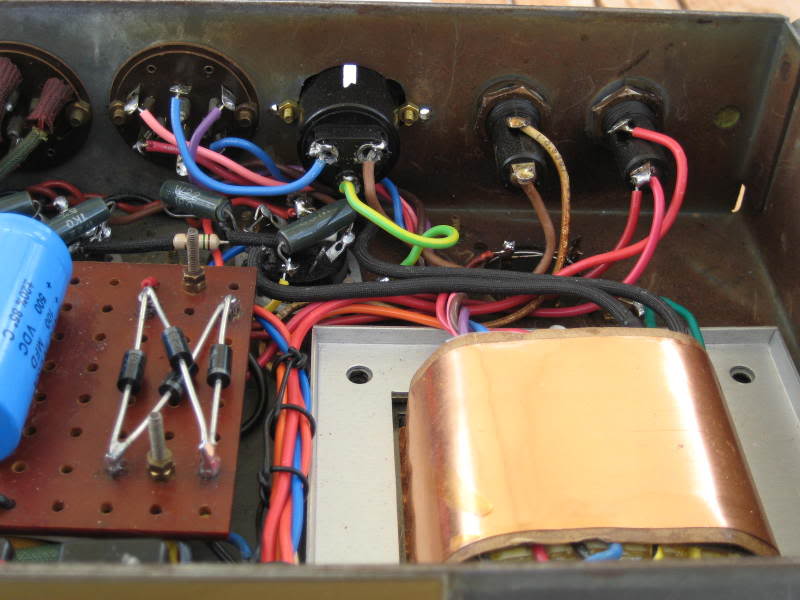

New power board:
’66 JTM100 Super PA Model #1968 100w SN 6894. Full gallery and details
Version 3B: New Power Transformer, Higher Voltage (1966-February 1967)
This version used the Drake 1204-43 power transformer (3″ stack) instead of the Radiospares transformer. These amps run very higher voltages, something that is hard on the tubes. Two original factory schematics show 560V at the plates (and 559V at the screen). Attempts to reverse engineer these amps, including the transformers, have given similar voltages, although users of the originals amps report everything from 530V to 625V. Compared to the earlier amps, these amps have more power, headroom, and punch. With 560V on the plates, you get around 80W at the point of breakup. However, the design maximum voltage of GEC KT66s is 500V, while absolute maximum is 550V (both screens and plates). In reality, it is the screens voltage that is a problem. Nevertheless, the voltages sag under load and the GEC KT66s usually work well in these amps. But new production KT66s, both Chinese and Russian, has serious problems with high screens voltages (anything above 520-530V is risky). New production tubes can even have problems with the high preamp voltages in these amps (400V in the cathode follower). Although this amp still uses the JTM45 preamp, voltages are significantly higher, resulting in a clearer tone from the preamp and a punchier response from the phase inverter.
These amps went from using the big Radiospares choke to using the Drake 352-114 choke. The 559V shown on the original schematics indicate that Marshall used the Drake (110 ohms) rather than the Radiospares choke (690 ohms). However, this schematic, like many later schematics, actually show a 20H (Radiospares) choke. Nevertheless, the relatively high screens voltage indicates the use of a choke with low resistance (the Drake 352-114). As mentioned, the high resistance of the Radiospares choke leads to lower screens voltages (also, it reduces current drawn by the screens). The Radiospares choke is easier on the power tubes, giving more screen sag and a softer response. Also, the bass will be a little tighter, and the tone somewhat clearer, since the Radiospares choke forms a more effective filter than the later chokes (being a 20H choke, whereas the later ones are 3H). However, the Drake choke gives a rawer tone with more power and less screen sag. It simply sounds a little more like the later plexis.
The power board of these amps looks like the last amps with the Radiospares power transformer, and filtering is kept the same. Schematics show the use of 270pf treble capacitor in the tone stack rather than the 250pf usually seen, giving slightly more upper mids. Like the later Bass and PA amps, the early amps (## 2-6) all have a warm tone with plenty of bass. This appears to reflect the fact that these amps are derived from a bass amp, namely the Fender tweed Bassman. On all these amps, it is usual to turn down the bass when playing at high volumes (although some prefer to decrease coupling capacitors on V1 and V3 to get tighter bass).
Like their predecessors, these amps had aluminium chassis, JTM45 faceplate, and the white Super 100 amplifier back panel. However, on the last of these amps the aluminium chassis was strengthened by block ends cast in aluminium (also found on late JTM45s). The head cabinets went from using narrow Vox vents to using a single narrow vent (used until 1968), offering better ventilation. Some used yellow, round indicators, others square red indicators. Serial numbers go from the 6600 range through the 7100 range. Speaker cabinets used Celestion G12M 20W at first. Later the G12H 25W was also offered (probably 55hz speakers).
Pictures indicate that both Cream and the Jimi Hendrix Experience used Super 100 amps extensively in 1966-67. These amps (especially #3B) are commonly thought to have been used on Fresh Cream and Are You Experienced – something that seems probable if we judge by ear (however, Disraeli Gears might have been ##4 or 5A). The Who is reported to have used all the early 100 watters (##2-4) live on guitar, bass, and PA, and some of these amps may have been used by Free as well. Also, Malcolm Young of AC/DC is reported (by Marshall Law magazine) to prefer a 100W plexi with white back panel (alongside a Superbass). According to Ritchie Flieger, the amp Malcolm used on Ballbreaker had 625V on the plates of the KT66s (suggesting it is a #3B or possibly a #4A). However, the choke is rumoured to have been replaced with a big resistor in order to reduce screens voltage and increase tube life. Finally, Eric Johnson is supposed to have used several recreations of this amp over the last years.
Partly as a result of this there has been a renewed interest in these amps lately. The so-called JTM45/100 has gained reputation for having great clean and distorted tones without being overly loud or bright. Dimed, it can sound like Clapton on the Normal channel and Hendrix on the Brilliant channel. It has been recreated by Marshall (100JH), Germino amps (Monterey), Metropoulos Amplification (45/100), Wallace amps (BKW 45/100), and others. It should be noted, however, that these recreations typically reduce voltages so that new production KT66s can be used.
The 100JH is based on the Dickinson amp, an amp used by Hendrix. This amp represents an anomaly since it has a 33K/500pf tonestack, 32+32uf preamp filtering (with 10K resistor between the nodes), a big 10K resistor (not 8.2K) between screens and phase inverter, and 470R screen resistors (instead of 1Ks). Basically, this is the tonestack introduced in 1968 with 1967-68 preamp filtering, and JTM45 screen resistors. Authentic parts are used, except the big 10K resistor that seems to be a modern replacement. However, it is not clear who made these changes and when they were introduced. In any case, these specs will make for a slightly more aggressive amp.
’66 JTM45 100w Model #1959 SN 7168. Full gallery and details
Version 4A: First EL34s (February 1967)
In February 1967, the Drake 1202-119 output transformer was introduced together with EL34s. When changing from KT66s to EL34s, the primary impedance of the output transformer was reduced greatly (from 4K to 1.75K). However, the new transformer still has the same stack thickness and the same secondaries as its predecessor. It is not known whether the impedance was changed in order to accommodate EL34s or in order to produce more power. Although EL34 load lines suggest that a 1.7K load is appropriate for a quad (and 3.4K for a pair), this presupposes voltages around 420V (as shown by Randall Aiken). However, Marshall used the 1204-43 transformer, meaning that the voltages are significantly higher. The combination of low primary impedance and high voltages results in a very powerful amplifier that runs the EL34s very hard (leading to redplating). However, good tubes (Mullard xf2 EL34s) and power supply sag alleviated this problem somewhat. Theoretically, the change of output transformer would double the output, making it a powerful amp indeed. In reality, the power is less than doubled although it exceeds the 115-120 watts produced by later EL34 amps. The new transformer results not only in a louder amp but also changes tone and feel somewhat, making it more dirty and aggressive. The harmonic overtones contain more 3rds, 5ths, and 7ths; it is not as good for playing complex cords (e.g., E7+9) as its forerunners. This amp excels at crunchy rock and light breakup. The clean sound is very good, but not as great as the KT66s amps. Overall, the sound is very similar to the later 1967 amps, although slightly cleaner sounding.
With the exception of EL34s and the 1202-119, this amp is identical to its immediate predecessor. However, the Vox vents are no longer used; all headcabs use a long narrow went, although its thickness varies. It is uncertain whether all amps used 16uf filtering in the preamp or whether dual preamp filtering was introduced. Although a few pictures, reports, and recordings exist, this amp is very rare and has not been reissued or recreated (except by the present author). Serial numbers seem to be confined to the 7200 range.
’66 JTM45 100W Model #1959 SN 7233. Full gallery and details
Version 4B: Very Last Super 100 amplifiers (JTM45/100s) (Spring 1967)
These amps are identical to its immediate predecessors with two exceptions. First, the power board was changed to include 8 filter caps (like later 1967 amps), instead of the 7 caps on earlier models. Instead of using a single 32uf capacitor at the phase inverter, two 32uf caps were used in series for a total of 16uf. This will lead to slightly more squish and compression but the amp will handle higher phase inverter voltages without blowing up filter caps (this is a problem when amp is turned on without power tubes). Second, the last of these amps – but not all – used two fuses on the back panel like the later Superlead and Superbass amps, making it easier to change the HT fuse. Finally, it might be mentioned that one of these amps have 16+16uf preamp filtering, whereas another seems to have 32+32uf, something that anticipates the later 1967 amps. The higher filtering will reduce voltages in the first gainstage (V1) slightly (by using a 10K dropping resistor between the nodes) and it will give slightly tighter bass in the preamp. These amps are typically Super PAs with serial numbers from the high 6.600 series through the 8.400 series.
’66 JTM45 100W Model #1959 – Bryan Adams. Full gallery and details
’66 JTM45 100W Model #1959 – Bryan Adams. Full gallery and details
Version 5A: Very First Superleads and Superbasses, Yet Last JTM45s: The Introduction of Dual Rectifiers (Late Spring 1967)
These amps were the very first Superleads and Superbasses, yet the very last JTM45s. They have JTM45 faceplates, gold Superlead or Superbass backplates (with two fuses) and block end aluminium chasses. On the Superlead (1959) model, a 5000pf bright cap was introduced, giving a brighter and more aggressive tone. With the exception of the bright cap, the bass model (1992) used the same circuit as the lead amp – something that was also the case earlier with 100W, 50W and JTM45 amps. The Super PA and Super tremolo amps also used the same circuit, except the use of 470K mixer resistors instead of 270Ks on the PAs. PA amps also left out the 500pf cap at the mixer resistor (a cap that makes one channel brighter and the other darker).
The Drake 1202-119 output transformer was still used on these amps, but a different power supply was introduced with the Drake 1203-80 power transformer (2.5″ stack). The 1203-80 has two 95VAC secondaries that are feed to two different voltage doubler (bridge) rectifiers. After rectification each rectifier delivers around 250VDC for a total of ca. 500V. Although this voltage is high, good EL34s can usually handle it. The power board on these models have dual rectifiers and 8 32uf capacitor. Also, the single 16uf preamp filter cap is replaced by a dual 32uf cap (occasionally a dual 20uf).
These amps are the second generation of EL34 amps with serial numbers in the low 10.000 series. Headcabs used both the narrow vent found on earlier amps and the wide vent used on later amps. It is uncertain is any of these amps had steel chassis like the later amps did. It is not perfectly clear why Marshall changed the power supply significantly on the 100W amps (but not the 50W amps). Although the new power transformer (1203-80) has a smaller stack than its predecessor (1204-43), it still delivers sufficient power while reducing the total voltages slightly (something that is good for tube life).
’67 JTM45 Super Bass 100W Model #1992 SN SB10019. Full gallery and details
New power board:
’67 JTM45 Super Bass 100W Model #1992 SN SB10019. Full gallery and details
Aluminum chassis with new back-plate:
’67 JTM45 Super Bass 100W Model #1992 SN SB10017. Full gallery and details
’67 JTM45 Super Bass 100W Model #1992 SN SB10017. Full gallery and details
Version 5B: Black Flag 100W with Dual Rectifiers (Mid 1967)
The so-called Black Flag amps are easily recognizable by having a reverse logo “J.T.M.” faceplate. These models are sometimes referred to as “JTM100s” as opposed to “JTM45/100s”. These are the first 100W amps known to feature a steel chassis. The new chassis made it possible to reduce cost while increasing strength. However, the transformers were placed very close together, something that can lead to noise. Except for the chassis and faceplate these amps are identical to the last JTM45s. The output transformer was typically a 1202-119, but the very Black Flags appear to use the Drake 1202-132 (introduced June 1967). The 1202-132 has a 4 ohms taps instead of the 1202-119’s 100V tap. These transformers are very similar but the 132 has slightly less bass than the 119. The first Black Flag amps used 270K mixer resistors (like the JTM45s), whereas the last ones used 470K mixer resistors (like the later amps), resulting in slightly more gain as well as more low midrange on the bright channel. Both Piher and Iskra carbon film resistors are used, although Iskras became predominant in the late 1960s. Carbon composite resistors are used less frequently than on the early amps (but some Black Flags have a 1W carbon composite 10k tail resistor). The voltages on these amps are recorded to be around 480V, slightly lower than earlier amps. Headcabs used both the narrow vent found on earlier amps and the wide vent used on later amps. All these amps had serial numbers in the 10.000 range.
Pictures show Hendrix with a Black Flag the fall of 1967 and the spring of 1968. This amp can be seen the first time June 18 1967 at Monterey and appears to have been used extensively for dirty tones on Axis: Bold as Love. It can probably be heard on BBC Sessions from the fall of 1967 and on “Catfish Blues” on Blues. Tonal similarities suggest Hendrix used it also on “Voodoo Child Blues” (Blues), “Voodoo Child (Outtake)” (Electric Ladyland & Beyond), and “Voodoo Child” (Electric Ladyland). Another Black Flag user is Paul Kossoff, as shown by pictures from Free album sessions (found in the sleeve of Tons of Sobs). Finally, recent pictures and videos show Eric Johnson with a Black Flag, probably used for Hendrix inspired dirty rhythm tone.
Partly as a result of this, there has been renewed interest in Black Flags amps lately. The circuit has been recreated by builders on the Metroamp forum and by Germino amps (the early Fillmore Classic, no longer made). Some users of the original amps (as well as users of recreations) have reported problems with ghost notes at loud volumes. Some originals and clones are modified with increased filtering that minimizes ghosting, but this gives a harder tone and feel to the amps. Others have changed the grounding scheme (especially the ground loop at the potentiometers) in order to deal with ghosting. How these amps differ from the earlier and later EL34 amps tonally is still not perfectly clear. Some find these amps to sound like the later 1967 amps, while others find them to have a unique dynamic response due to the dual rectifier power supply. Needless to say, these amps are capable of great blues and rock tones when properly maintained and set up.
New faceplate and chassis: ’67 Black Flag JTM Super Bass 100w Model #1992 SN SB10214. Full gallery and details
Version 5C: The very first JMP100s (Mid-Late 1967)
Basically identical to the Black Flags, these amps are easily recognizable by having a “JMP” faceplate and sometimes also a polarity switch on the front (especially on US models). Like the last Black Flags, these models used 470K mixer resistors. Both 1202-119 and 1202-132 output transformers are used. Serial numbers are still in the 10.000 range.
’67 JMP Super Bass 100w Model #1992 SN SB10257. Full gallery and details
Still dual rectifiers:
’67 JMP Super Lead 100w Model #1959 SN SL10228. Full gallery and details
Version 6: New Power Supply, last Superleads with Old Preamp (Late 1967)
As shown by schematics, Marshall made changes again to the power supply: Instead of using two voltage doubler (bridge) rectifiers, Marshall used one voltage doubler (bridge) rectifier like the later amps have. So instead of feeding two rectifiers with 95VAC each, Marshall now feed one rectifier with ca. 190VAC, getting basically the same voltage after rectification as before. This was initially done by bridging two secondaries of the 1203-80 power transformer (however, later transformers have only one 190V secondary with centre tap). A 1967 factory schematic indicates that Marshall also lowered the plate voltage to 460VDC, something that increases tube life, reduces power while giving more compression and distortion (Doyle, History of Marshall, p. 204). Power transformers went from the Drake 1203-80 to the Dagnall T2562 laydown power transformer. The new power transformer was similar to the Drake 1203-80 (delivering 180-190VAC) but had a thinner 1.8″ stack and a shield for reducing noise. Both the Drakes and the Dagnalls sag significantly under load. Typically, the plate voltages drop 80-90V at full distortion.
The 1967 factory schematic shows four 32uf 450v mains filter caps like the earlier amps had. However, this configuration is rarely seen on EL34 amps. Most amps with the new power supply used only two 100uf main caps in series for a total of 50uf (although two 32+32uf caps in series for a total of 32uf may have been used). These changes to the power supply reduced the number of parts, and probably also reduced costs and ghosting. The screens filtering was typically 16uf (two 32uf caps in series), but some late 1967 amps have 50uf (two 100uf caps in series). 50uf gives a tighter and faster amp, whereas 16uf gives a softer and smoother amp. 50uf is great for heavy riffs, the 16uf for bluesy solos. Phase inverter filtering was 32uf on some amps and 48uf (16+32uf) on others. However, the phase inverter filter cap is no longer place on the power board inside the chassis, but put on top of the chassis, near the power transformer like the later plexis had (the hole in the chassis was unused on ##5B-C).
On the last of these amps the preamp voltages were reduced by increasing the voltage drop resistor between the screens and the phase inverter (from 8.2K to 8.2K+10K). These amplifiers typically used the Drake 1202-132 output transformer, although a few used the Drake 1202-119 and the new Dagnall C1998 (1.5″ stack; introduced August 1967). The Dagnall has a crisper and tighter sound with a broader bandwidth than any of the early Drakes. Since the all these early amps are bass heavy, I prefer the 1202-132 for these EL34 amps. Chokes were typically the Drake 352-114, although a few may have used the Dagnall C1999 (same specs but nylon insulation) or even the 20H Radiospares choke. The negative feedback loop in the power amp was often connected to the speakers jacks (instead of the 16ohms output like the earlier amps), giving a rawer tone on lower ohms settings. Both narrow and wide vents headcabs are used in this period. These amps were the last to use serial numbers in the 10.000 range.
Pictures from 1968 and very late 1967 show Hendrix with a JMP100 amp (##5C or 6). And pictures from October 1967 and later show Cream with JMP100 amps with polarity switches (cf. Doyle,History of Marshall, p. 36). Cream acquired new amps (##5C or 6) when returning to the UK in October 1967 after a US tour. These amps can be heard on Wheels of Fire and on BBC Sessions recorded October 24 1967 and January 9 1968. The late 1967 amp (#6) has been recreated by Metropoulos Amplification (10.000 series) and Germino Amps (Fillmore Classic,). The Fillmore classic actually went from double to single rectifier (from #5C to #6), suggesting that Germino prefers the later circuit.
Version 7A: New Superlead Circuit (1968)
In 1968 Marshall changed the preamp towards the now famous Superlead circuit. The voicing of the first gain stage was changed when the so-called split cathode preamp was introduced. The normal channel cathode was now 820R/330uf, giving a very dark and gainy sound. The brilliant channel cathode was 820R/0.68uf, giving less gain in the lows than the normal channel. The voicing of the brilliant channel was also affected by reducing the coupling cap from 22nf to 2.2nf, giving a faster and tighter sound with clearer bass. The second gainstage (common to both channels) was changed by adding a 0.68uf bypass capacitor to V2A’s cathode. This results in more gain in the mids and highs, but reduces the ability to clean up somewhat, giving a less open tone than the earlier early amps. Famously, the tonestack was changed from 56K/250pf to 33K/500pf (560pf), offering yet more gain. Coupling caps in the phase inverter were changed from 100nf to 22nf, giving a tighter and faster tone with less low bass. Some amps use 27K negative feedback (like the late 1967 amps), whereas others use 47K (typically connected to 8 ohms output). The latter increases distortion and volume while reducing bandwidth and clean headroom, giving a rawer tone that is slightly looser in the lows. The response of the power amp will be slightly slower and more dependent on which speakers are used.
Transformers were typically Dagnall C1998 output transformer, Dagnall T2562 laydown power transformer and Drake 352-114 or Dagnall C1999 choke. The new Dagnall C1999 choke had the same specs as the Drake 352-114 (3H, 100mA, 110 ohms) but the insulation was nylon instead of paper. The last reported use of the Radiospares 20H choke is in this period.
In my mind, the change to the Dagnall output transformer fits this amp, giving it a tighter and crisper tone under distortion suited for heavier playing styles. These amps are louder, tighter and more aggressive than its forerunners. Although the tremolo amps also got the new lead circuit, the Bass and PA amps continued to use the old JTM type preamp (although voltages were lower, since the dropping string used 8.2K+10K, not 8.2K). However, the power amp of the bass and PA amps followed the lead amps by using Dagnall transformers and 47K negative feedback (while the phase inverter coupling caps were kept at 100nf). These late bass and PA amps – both 100W and 50W – are similar to the earlier JTMs, although they sound rawer and feel stiffer.
The power supply on the new Superleads typically used 50uf at the mains (100uf caps in series), although 32uf is also seen (two 32+32uf caps in series). Filtering on the screens was typically 16uf (32uf caps in series), but 32uf is also seen (two 32+32uf caps in series) as is 50uf (100uf caps in series). Phase inverter filtering went from 32uf or 48uf (32+16uf) on the first amps to 80uf (40+40uf) and 100uf (50+50uf), giving less squish and compression at higher volumes. Plate voltages are reported to vary from 460V to 490V. The headcabs have a wide vent like the later amps, giving better ventilation. Serial numbers are in the 12.000 range. Finally, speaker cabinets changed in this period. Grill-cloth went from pinstripe to basket-weave. And power handling was increased from 20W to 25W on the G12M and from 25W to 30W on the G12H. The old cabs seem to sound slightly woodier and brighter than the new ones. But the new cabs fit the bright, aggressive tone of Superleads.
The most famous user of the 1968 Superlead is Edward Van Halen (especially on Van Halen). Techs servicing the amp report a stock circuit with reduced negative feedback (100K at 4ohms), Sylvania 6CA7 output tubes biased hot and a Variac (used to drop volt voltages). This setup produces a more distorted tone than a standard Superlead. The negative feedback is modified to 1970s specs, giving a rawer and looser tone that fits the hard sounding Sylvania 6CA7s. The 1968 Superlead is also likely to have been used by Hendrix in 1968 and later. Today, this circuit has become very popular and several builders offer recreations of it, notably Metropoulos Amplification (12.000 series) and Germino Amps (Headroom 100 lead).
’68 JMP Super Lead 100w Model #1959 SN SL10403. Full gallery and details
Version 7B: Preamp filter cap on top of chassis (1968)
This version had the preamp cap on top of the chassis (like the later amps) but retained the cap board inside (like the earlier amps). Probably made from July to Sept 1968.
Preamp filtering on top of chassis
’68 JMP Super Lead 100w Model #1959 SN SL12180. Full gallery and details
Version 8: New Chassis and Higher Filtering (Late 1968-Mid 1969)
In late 1968 a new chassis was introduced: The output transformer was moved away from the power transformer and rotated in order to decrease noise (especially hum). The preamp filter cap was removed from the preamp board and mounted on the top of the chassis near the choke. Preamp filtering was increased to 50+50uf, giving a stiffer feel. Filtering was also increased to 50uf on the screens, giving a tighter bass. The power board was removed, and filter caps were moved to the top of the chassis between the output and power transformers. Also, 56K bleeder resistors were added to the screens filter caps. This ensures equal voltage drop over the caps, preventing them from blowing up and preventing you from getting a shock when opening the amp. However, these resistors get hot and can wear out after many years. If you need to replace them, try to increase the value to ca. 220K in order to increase resistor life and to minimize ghosting. Amps from this period often have serial numbers in the 10.000 and 12.000 ranges, but these serial numbers should not be confused with the 1967 and 1968 amps using the same range of serial numbers. The 1969 Superleads typically use the abbreviation “SL/A,” whereas the earlier amps had “SL”. Finally, the voicing of the brilliant channel was changed, probably during 1969 (although the exact timing is unknown). The cathode resistor went from 820R to 2.7K, giving a crisper tone that cleans up better. These amps are associated with Jimmy Page, Hendrix, and Eric Johnson.
’69 JMP Super Lead 100w Model #1959 SN SL12402. Full gallery and details
Version 9: Standup Power Transformer (1969), Last Plexis
In 1969, yet another chassis was introduced with a standup Dagnall power transformer. However, the earlier chassis (#8) was still used frequently.
’69 JMP Super Lead 100w Model #1959 SLAxxxxA. Full gallery and details
Version 10: End of Plexis: Aluminum Panel Era (1969-)
The plexi era ends in the middle of 1969 when the aluminum panel amps are introduced. Around the same time the front-lip on the headcabs went from a flat top to round top. The aluminium amps are very similar to the plexis, although some things changed: Around 1971 the C2668 Dagnall output transformer was introduced. This transformer has nylon insulation instead of paper insulation, sounding brighter and more aggressive. At the same time mustard caps were often replaced with Philip “chicklet” caps, giving a brighter and more aggressive sound again. The negative feed was decreased to 100k at 4 ohms, giving a very raw and distorted tone that is a little loose in the lows. This change also made the 0.68uf bypass cap on the second gainstage (V2A) virtually unnecessary; since the amp already had plenty gain (still a few amps had both the 0.68uf and the 100k). Also, the voltages are very high on the early 1970s 100W amps (often around 520v), something that is very hard on the EL34’s screens, although it makes the power amp run a little cleaner. One easy way to improve tube life on these amps – and the later 2203s – is to decrease the 1M resistor on V3A to 390K like Steve Grindrod did on the Park 1210. This mod will improve the balance of the driver under heavy clipping, often preventing redplating on V4 and V5 when running flat out. It should also be mentioned that print circuit boards (PCBs) are introduced in 1973. Finally, speaker cabs change from basket-weave to checkerboard and speakers evolve from Greenbacks to Creambacks and Blackbacks, gradually sounding brighter and more aggressive. These amps are associated with AC/DC, Thin Lizzy, and many others.
The present text represents an attempt to reconstruct the evolution of the 100 watt amps by using schematics, layouts, pictures, databases, and different tech reports. Information is based on examining original amps, on circuit analysis, and attempts to recreate the various circuits. Although some of these amps are relatively well-known (##2, 3B, 5B, 6-10), a comprehensive overview of technical details and how the different amps sound have been lacking. The present text represents an attempt to piece together existing information in a way that is useable for guitarist and historians, repairmen, collectors and amp-builders.
The evolution sketched above represents a typology and chronology, but there is likely to be some overlap between the different models since different variants could be made simultaneously forshorter periods of time. The dating of the different models represents estimates based on data-codes (notably on mustard caps) and when transformers were introduced.
Like the 50W amps, the 100W amps sounded progressively brighter and more aggressive over the years, making it easier to cut through a dense mix. As is the case with 50W amps, the 100W amps can be grouped into two main categories. On the one hand we have the post 1968 lead circuit with an aggressive tone, on the other we have the JTM and Bass circuit with a warmer and cleaner tone. The former is good for heavy rock, the latter for blues and classic rock. I feel that the latter circuit works the best with the JTM power amp and Drake transformers. The 1966 Super amp (#3B in particular) stands out as a great achievement, although 1967 amps are also great. For more aggressive tones I prefer the 1969 Superlead, while others prefer the response of the 1968 circuit. Needless to say, no single amp can reproduce the tone or response of these different circuits without throwing out the baby with the bathwater.
Writing this article would be impossible if it were not for input from others. Thorleif S. Hoff, Larry Grohmann, and Randall Aiken deserve special mentioning. I have depended on databases at Amp Archives and Marstran as well as the Metro, Marstran, Ampgarage and Plexipalace forums.
